The Moment Everything Connected

I was cross-referencing the Hyatt Regency walkway collapse (1981) with Galileo’s broken marble column (1638) when it hit me: these weren’t just similar disasters. They were the same disaster, separated by 343 years.

Both involved well-intentioned modifications to working systems. Both were considered “improvements.” Both bypassed rigorous analysis because the changes seemed minor. Both doubled the load on critical connection points. Both killed what they were meant to protect.

The technology was different—Renaissance marble versus modern steel. The mathematics was different—geometric reasoning versus finite element analysis. But the conceptual error was identical: modifying a system without re-analyzing how that change affects the entire load path.

That pattern—which I now call the “Safety Modification Paradox”—was just the beginning. As I cataloged 50+ major engineering disasters spanning from 2600 BCE to 2024, four other patterns emerged with the same crystalline clarity. Together, they form what I call the Five Syndromes of Failure—the recurring conceptual diseases that kill engineering projects regardless of era, material, or technology.

This post documents how that framework was born.

The Research Method: Pattern Mining Across Millennia

Phase 1: The Timeline (4,600 Years of Data)

The journey began with a simple question: Do engineering failures teach us anything, or do we just repeat them?

To answer that, I built a comprehensive timeline of catastrophic failures from ancient civilizations to modern infrastructure. The dataset included:

  • Ancient Era (2600 BCE - 500 CE): Meidum Pyramid, Fidenae Stadium, Marib Dam
  • Medieval/Renaissance (500 - 1800): Gothic cathedral collapses, bridge failures
  • Industrial Revolution (1800 - 1950): Boston Molasses Flood, Tacoma Narrows Bridge
  • Modern Era (1950 - 2024): Three Mile Island, Chernobyl, Hyatt Regency, Francis Scott Key Bridge

Each disaster was analyzed for:

  1. Proximate cause (What physically broke?)
  2. Technical fault (How did the engineering fail?)
  3. Conceptual error (Why did the designers miss this?)

Historical timeline of engineering disasters from 2600 BCE to 2024 CE, showing major failures across different eras with illustrated vignettes

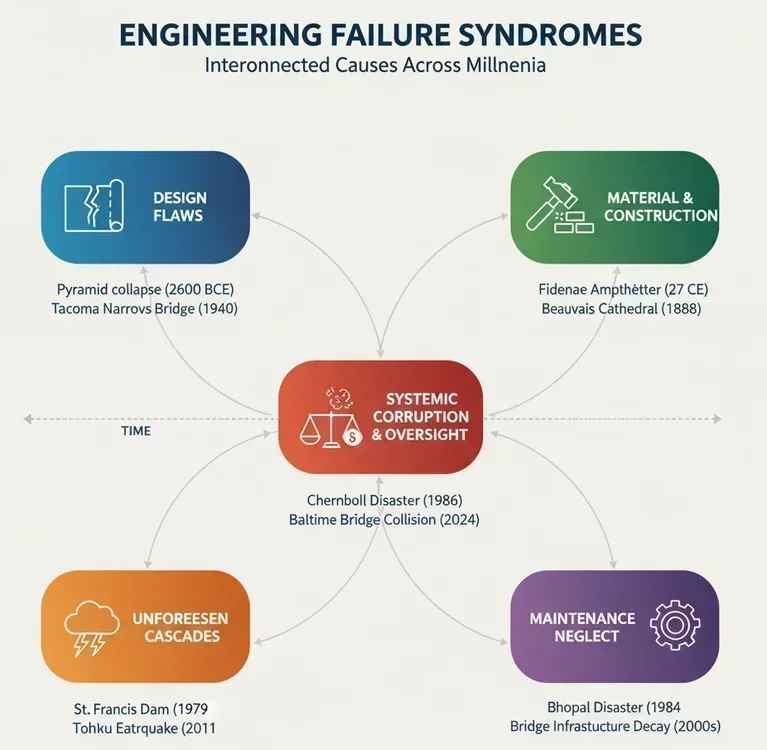

The Framework: Five Syndromes of Failure

Why “Syndromes”?

I borrowed the term from medical diagnostics. A syndrome is a cluster of symptoms pointing to an underlying pathology. Similarly, each engineering disaster exhibits multiple warning signs (symptoms) that reveal a deeper conceptual error (pathology).

Like medical syndromes, these failure patterns are:

  • Recognizable (distinct clusters of warning signs)
  • Diagnosable (detectable before catastrophe)
  • Treatable (specific interventions prevent disaster)

Syndrome 1: Untested Mental Model

Core Error: Trusting theoretical predictions without physical validation.

Historical Span: 2600 BCE (Meidum Pyramid) → 2024 (Rajkot roof collapse)

Warning Signs:

  • Novel form factors or operating environments
  • Reliance on computer models without prototypes
  • Assumptions about component behavior in series
  • Statements like “the math checks out, we don’t need testing”

Case Study: The Tacoma Narrows Bridge (1940) was mathematically sound for static loads. But engineers never modeled aerodynamic instability—the wind-induced flutter that destroyed “Galloping Gertie” in moderate winds. They had an untested mental model of how bridges interact with moving air.

Modern Manifestation: Software architecture designed for theoretical user behavior that fails spectacularly when real users do unexpected things.

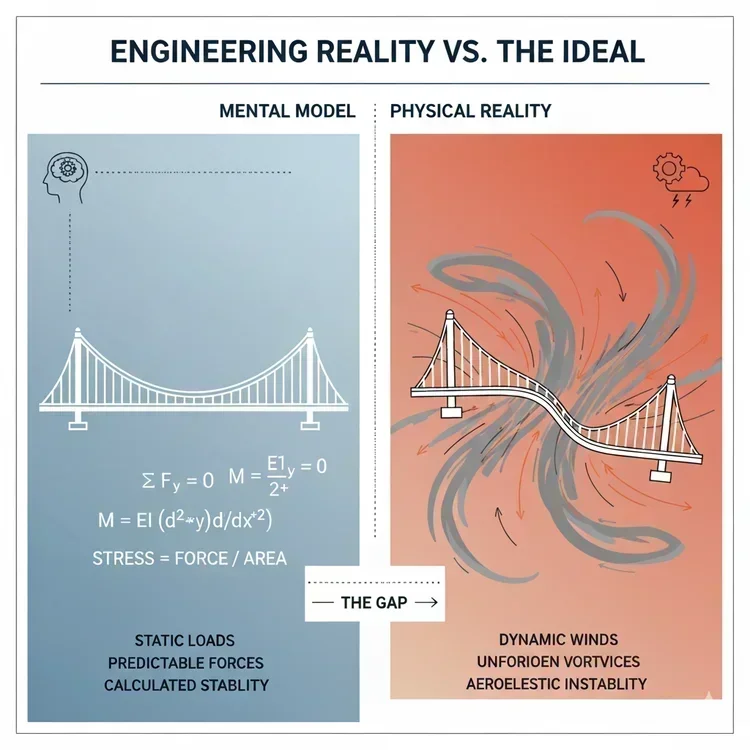

Conceptual illustration contrasting a bridge designer’s theoretical mental model with the chaotic reality of wind-induced aerodynamic instability

Syndrome 2: Safety Modification Paradox

Core Error: Modifying a working system without re-analyzing the entire load path.

Historical Span: 1638 (Galileo’s column) → 1981 (Hyatt Regency)

Warning Signs:

  • Construction “simplifications” that affect load-bearing connections
  • Changes justified as “making it safer”
  • Modifications proposed for cost/time savings
  • Anyone saying “it’s just a minor change”

Case Study: The Hyatt Regency’s original design used continuous hanger rods. A construction change created a two-rod system, forcing the upper walkway connection to support both walkways. This doubled the required load capacity from 20.3 kips to 40.7 kips. The connection, never redesigned for this new load path, failed catastrophically. 114 people died.

The Galileo Connection: His mechanic added a third support to a marble column resting on two end supports. Everyone agreed it was “safer.” But the end supports settled while the middle support stayed firm, transforming the beam into two cantilevers under tremendous stress. The column broke exactly above the “safety” support.

Modern Manifestation: Software “hotfixes” that break distant dependencies because no one regression-tested the entire system.

Before-and-after diagram showing the Hyatt Regency walkway hanger rod modification that doubled the load on upper connections, leading to catastrophic failure

Syndrome 4: Information Failure

Core Error: Small errors in data/communication propagate into massive physical consequences.

Historical Span: Ancient to Modern

Warning Signs:

  • Inconsistent technical drawings across departments
  • Known malfunctioning instruments not replaced
  • Missing safety documentation
  • Communication delays during emergencies
  • Reliance on single-source data without verification

Case Study: Lake Peigneur (1980). Faulty triangulation positioned a drilling rig 400 feet (122 meters) from its intended location. The 14-inch (356 mm) bit punctured not oil-bearing rock but the roof of an underground salt mine. In three hours, the entire 3.5-billion-gallon (13.2-billion-liter) lake drained into the mine, reversing a canal and destroying 70 acres of land.

The Principle: Physical systems are robust. Information systems are fragile. When information fails, physics takes over violently.

Modern Manifestation: GPS/mapping errors leading autonomous vehicles astray; supply chain failures from inventory data corruption.

Cascade diagram illustrating how a small 400-foot surveying coordinate error led to the massive Lake Peigneur disaster, showing the sequence from error to catastrophic lake drainage

The Meta-Pattern: Failure of Imagination

Here’s what startled me most: All five syndromes share a common root cause—the failure to imagine disaster.

  • Syndrome 1: Paconius never imagined his spool veering off-road.
  • Syndrome 2: Hyatt engineers never imagined their “simplification” doubling the load.

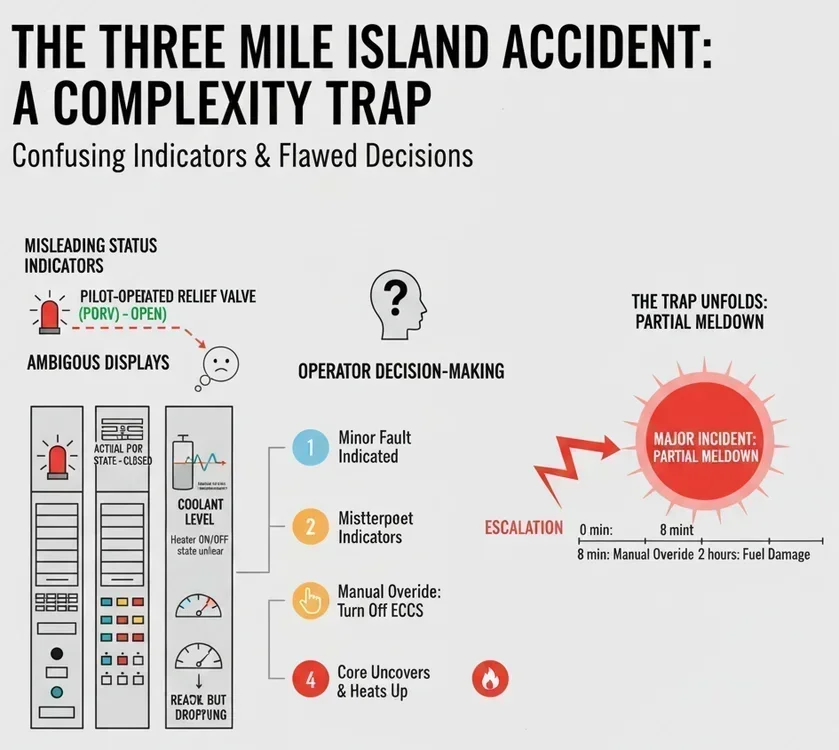

  • Syndrome 3: TMI operators never imagined the specific sequence: valve stuck + misleading light + contradictory training.
  • Syndrome 4: Lake Peigneur drillers never imagined they were 400 feet (122 meters) off-course above a mine.

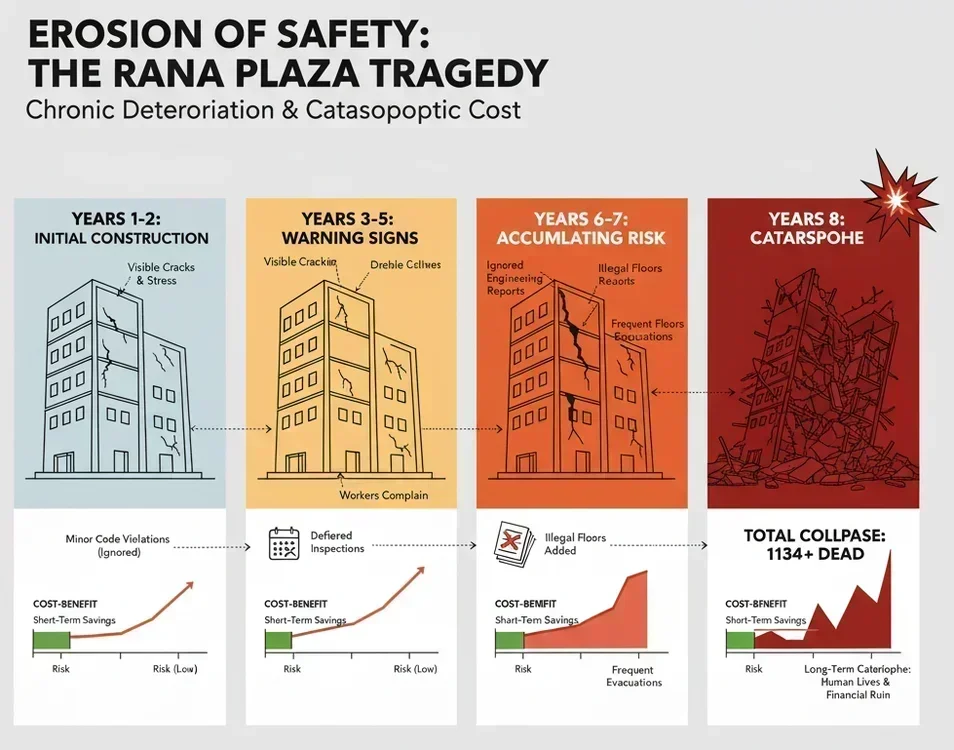

  • Syndrome 5: Rana Plaza owners never imagined “just one more day” would be the fatal day.

The most lethal engineering errors are the ones we fail to imagine are possible. Pattern recognition provides the historical blueprint for what must be imagined and defended against, no matter how improbable it seems.

Conceptual illustration showing the ‘failure of imagination’ as a central cognitive blind spot, with the five syndromes radiating outward from this fundamental error

Why This Framework Matters Now

The most unsettling discovery from this research: we’re not learning. The patterns are accelerating.

Between 2021-2024, we’ve seen:

  • Syndrome 5 dominate (Surfside, Derna, Key Bridge)
  • Syndrome 1 in temporary structures (Rajkot roof)
  • Syndrome 2 in infrastructure modifications (Metro overpasses)
  • Syndrome 4 in industrial accidents (East Palestine train)

The technology has advanced. The conceptual errors have not.
